Main Specifications

Device Type Switch - 16 ports - L3 - Managed - stackable

Enclosure Type Rack-mountable 1U

Subtype 10 Gigabit Ethernet

Ports 16 x 100/1000/2.5G/5G/10GBase-T (PoE )

Power Over Ethernet (PoE) PoE

PoE Budget 500 W

Performance Switching fabric bandwidth:480 Gbps ¦ Throughput:238 Mpps

Capacity Packet buffer size:16 MB

MAC Address Table Size 16K entries

Jumbo Frame Support 9KB

Routing Protocol RIP-2,IGMP,VRRP,OSPFv2,PIM-SM,static IP routing,PIM-DM,OSPFv3,PIM-SSM,ECMP,policy-based routing (PBR),MLD,MSTP,RSTP

Remote Management Protocol SNMP,RMON,Telnet,SNMP 3,HTTP,HTTPS,SSH-2,CLI,SCP,SFTP,DHCP,IPv4,IPv6,RSTP,TACACS ,RADIUS

Features BOOTP support,ARP support,auto-uplink (auto MDI/MDI-X),DoS attack prevention,DiffServ support,Broadcast Storm Control,Multicast Storm Control,Unicast Storm Control,SNTP support,Non-Stop Forwarding (NSF),sFlow,Per-VLAN Spanning Tree Plus (PVST ),Uni-Directional Link Detection (UDLD),LLDP support,DHCP relay,Link Aggregation Control Protocol (LACP),Remote Switch Port Analyzer (RSPAN),Per-VLAN Rapid Spanning Tree (PVRST),Management Information Base (MIB),dual firmware images,Class of Service (CoS),Precision Time Protocol (PTP),Spanning-tree Root Guard (STRG),Authentication,Authorization and Accounting (AAA),User Datagram Protocol (UDP),Protocol Independent Multicast (PIM)

Compliant Standards IEEE 802.1p,IEEE 802.3af,IEEE 802.3ad (LACP),IEEE 802.1w,IEEE 802.1x,IEEE 802.1s,IEEE 802.1ab (LLDP),IEEE 802.3at,IEEE 802.3az,IEEE 802.1AX

Power AC 120/230 V

Dimensions (WxDxH) 21.2 cm x 34.5 cm x 4.4 cm

Weight 3.22 kg

Localisation United States,Europe

Manufacturer Warranty NETGEAR lifetime warranty

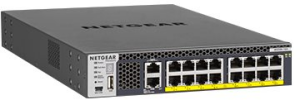

The NETGEAR M4300-16X is a 16-port 10G Ethernet switch designed for midsize and large organizations that require high-performance networking. It supports 10G and 1G speed on all ports and features a non-blocking architecture for full-speed forwarding and low latency.

The M4300-16X also supports advanced features such as Layer 3 static routing, IPv6 management, and multicast routing, making it a suitable choice for a variety of network deployments. It also includes several security features like ACLs, MAC authentication, and port security, ensuring that your network is protected from unauthorized access.

Additionally, the M4300-16X supports redundant power supplies and hot-swappable fan trays, providing high availability and easy maintenance. Overall, it's a robust and versatile switch that delivers high-performance and advanced features for modern networks.
